Multi-column pages
XSL-FO allows us to define a page which has multiple columns.
This can only be done for whole pages, not for partial pages. However
if we are in a region which has multiple columns we can treat it as a single-column
region and
place output across the whole width of the multi-column page
by setting span="all" on block-level elements which appear immediately below
the fo:flow element.
Columns are defined by setting the column-count
attribute of a body region element to a value greater than 1, and optionally setting the
column-gap
attribute to define a gap between the
columns.
The page master for this is similar to the one shown in Figure 18-1.
<fo:simple-page-master master-name="chapter-2col-odd">
<fo:region-start extent='2.5cm'/>
<fo:region-end extent='2.5cm'/>
<fo:region-body column-count='2' region-name="body" margin='2.5cm'/>
<fo:region-after region-name="footer-odd" extent="2.5cm"/>
<fo:region-before region-name="header-odd" extent="2.5cm"/>
</fo:simple-page-master>
Figure 18-1: The page master for a multi-column page

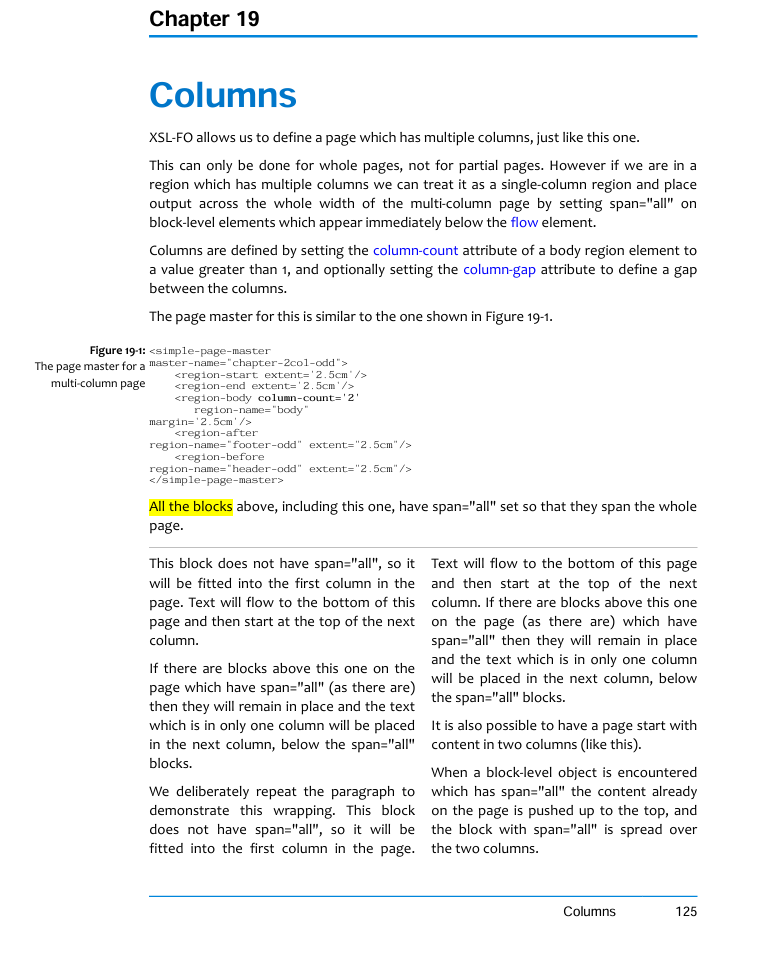

This picture shows a multi-column page:
All the blocks above the horizontal line in the middle of the page
have the property span="all"
so they go across the entire width of the page.
The blocks below the horizontal line do not have span="all"
so they
will be placed in the first column
in the page. Text will flow to the bottom of this column and then start
at the top of the next column.
If there are blocks above this one on the page which have span="all" (as there are) then they will remain in place and the text which is in only one column will be placed in the next column, below the span="all" blocks.
